Máy CNC Mài Răng GHP-3540
The GHP-3540 Gear Profile Grinding Machine applies the FANUC controller and high-speed grinding spindle;through the Matrix Precision-developed intelligent conversations window software, it can flexibly output the required tooth profile and grinding parameters. The workable machining workpieces include the involute gears and cycloidal gears.
GHP-3540 applies the globally famous FANUC controller and servo & direct drive motors; each axis can move simultaneously and receive a high-precision performance.

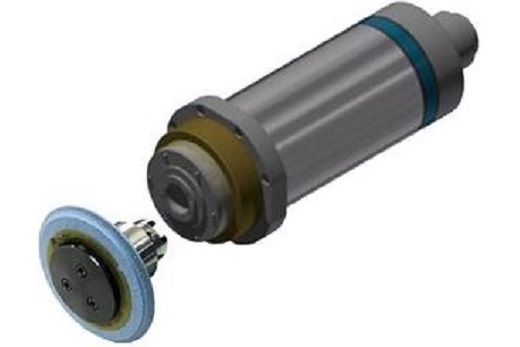

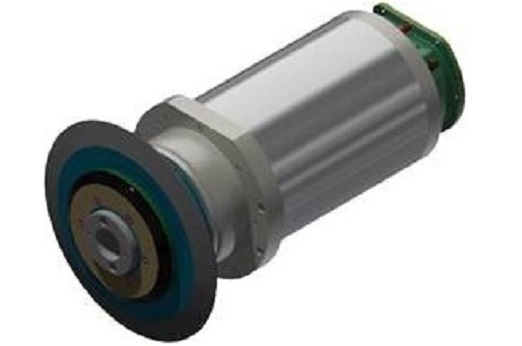

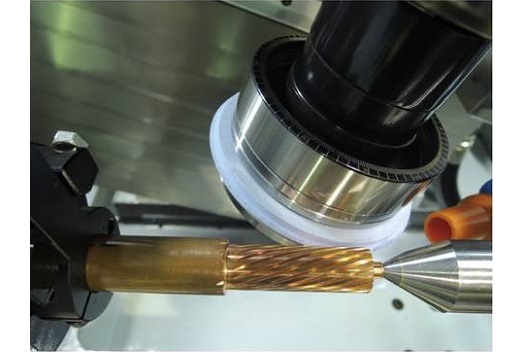

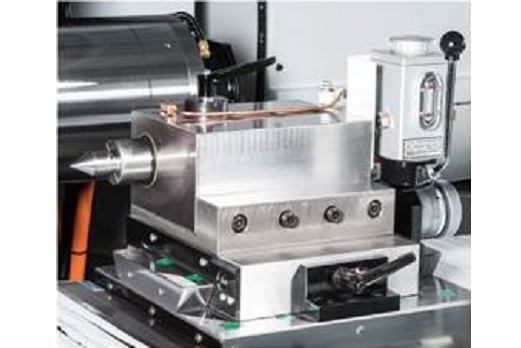

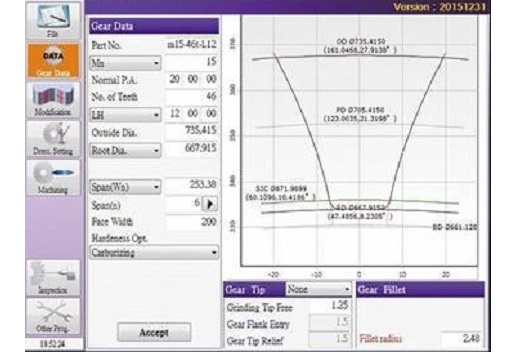

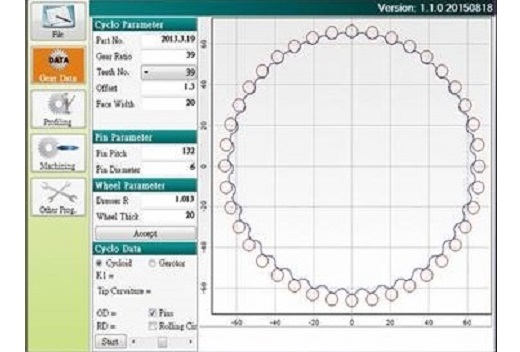

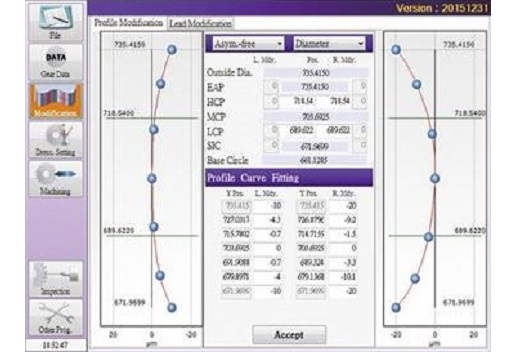

The Matrix Precision-developed intelligent conversations window software supports the complete machining process. Machine can generate NC program automatically through the parameters-input and setting of grinding conditions via the conversation, and thus increases the working efficiency significantly.
- Chất lượng tốt nhất!
- Giao hàng nhanh nhất!
- Giá cả cạnh tranh nhất!
Máy CNC Mài Răng GHP-3540 (CNC Gear Grinding Machine GHP-3540)

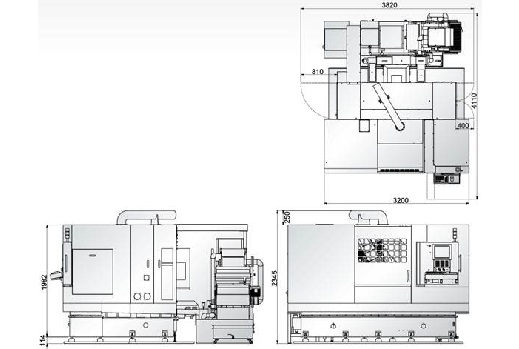

Thông số kỹ thuật máy:
| MAIN SPECIFICATIONS | GHP-3540 | |
|---|---|---|
| Grinding wheel spindle motor | 170G | 220G |
| Min. / Max. workpiece outside diameter | 30mm / 400mm | 30mm / 400mm |
| Max. module | M8 (DP3.2) | M8(DP3.2) (diamond point dresser) M12(DP2.1) (diamond rotary disc dresser) |
| Teeth range | 9~999 | 9~999 |
| Max. tooth depth | 18mm | 27mm |
| Helix angle | ±45° | ±45° |
| MECHANICAL SPECIFICATIONS | ||
| Min. distance between centers (standard) | 14mm | 80mm |
| Max. distance between centers (standard) | 685mm | 750mm |
| Max. distance between centers (through-bore in workhead) | v1200mm | 1200mm |
| Max. face width | (B-Axis 0º ) 400mm | (B-Axis 0º ) 400mm |
| Max. axial slide travel (Z-Axis) | (B-Axis 0º ) 650mm | (B-Axis 0º ) 650mm |
| Max. axial slide travel (Z-Axis) | (B-Axis 45º ) 210mm | (B-Axis 45º) 235mm |
| A-axis can accommodate a maximum outside diameter of the workpiece | 110mm | 110mm |
| Max. table load (workpiece with fixture) | 80kg | 80kg |
| GRINDING WHEEL SPECIFICATIONS | ||
| Min. wheel root diameter/Max. wheel outside diameter | 50mm / 230mm | 210mm / 320mm |
| Max. grinding wheel thickness | 30mm | 40mm |
| Max.rpm of grinding spindle | 10000 rpm | 4000 rpm |
| Drive power of grinding spindle | 20 kW | 17kW |
