Máy CNC Mài Răng LFG-8040

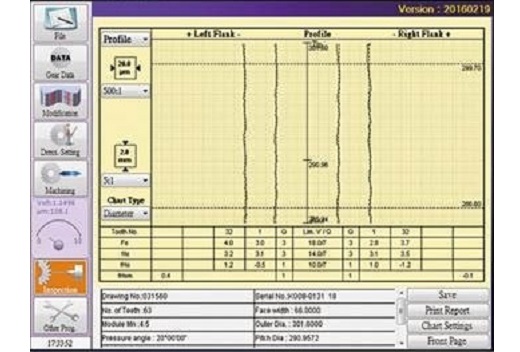

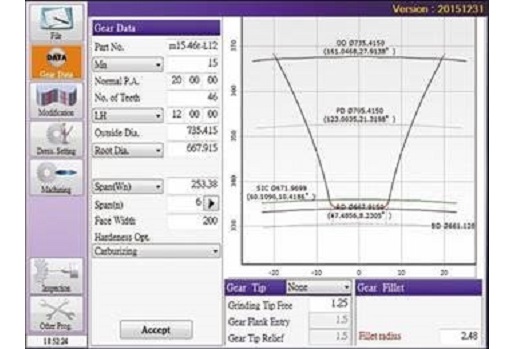

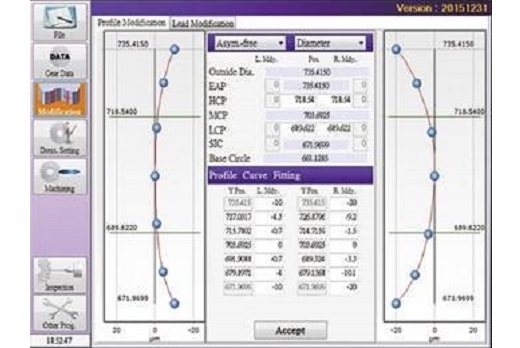

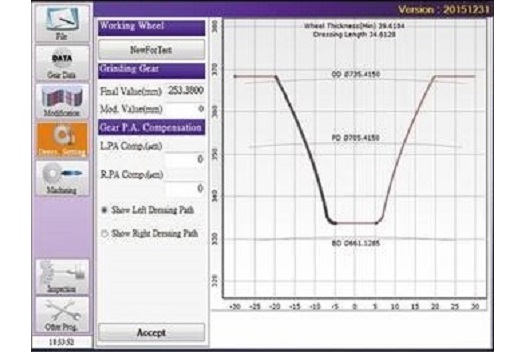

The GVP-8040 Vertical Gear Profile Grinding Machine applies the FANUC controller and high-speed grinding spindle;through the Matrix Precision-developed intelligent conversations window software, it can flexibly output the required tooth profile and grinding parameters. The workable machining workpieces include the involute gears, large-module hobs and cycloidal gears.
GVP-8040 applies the globally famous FANUC controller. It combines the direct drive motor and 8-axis close-loop servo system; each axis can simultaneously run to obtain a high-precision performance.
GVP-8040 is built in vertical construction, which enables mitigating the bending/deforming effect of large workpieces from gravity and building a more stable gear grinding process.
- Chất lượng tốt nhất!
- Giao hàng nhanh nhất!
- Giá cả cạnh tranh nhất!
Máy CNC Mài Răng LFG-8040 (CNC Gear Grinding Machine LFG-8040)
Thông số kỹ thuật:
| MAIN SPECIFICATIONS | LFG-8040 | |
|---|---|---|
| Gear | ||
| Max. workpiece outside diameter | 800mm | 31.4” |
| Tooth range | 9~999 | |
| Min. workpiece root diameter | 50mm | 1.9” |
| Module | M2.0~M20 | DP12.7~DP 1.27 |
| Max. tooth depth | 45mm | 1.7” |
| Helix angle range | ±45° | |
| Hob cutter | ||
| Min. root diameter/Max. workpiece outside diameter | 50mm~350mm | 1.9”~13.7” |
| Max. flute depth | 55mm | 2.1” |
| Flute range | 1~99 | |
| Flute helix angel range | ±40° | |
| MECHANICAL SPECIFICATIONS | ||
| Max. grinding slide travel (Y axis) | 400(450)mm | 15.7”(17.7”) |
| Max. workpiece slide travel (Z axis) | 500mm | 19.6” |
| Tailstock center height above rotary table | 600mm~1250mm | 23.6”~49.2” |
| Table diameter | 740mm | 29.1” |
| Max. table load (workpiece with fixture) | 2500 kg | 5500 lb |
| GRINDING WHEEL SPECIFICATIONS | ||
| Min. dressable diameter of the grinding wheel Max. grinding wheel diameter | 260mm / 400mm | 10.2” /15.7” |
| Max. grinding wheel thickness | 70mm | 2.7” |
| Max. grinding spindle speed | 4000 rpm | |
| Drive power of grinding spindle | 15kW | 20Hp |
