GEAR SHAVING MACHINE HGS 4H-NC4 / NC5
Works	Max. Module	1~8 mm
	Max. O.D.	25~400 mm
	Max. Works Width	150 mm
	Max. Works Length	700 mm
Axial axis	Max. Infeed	± 75 mm
Tangential axis	Max. Infeed	± 6 mm
Cutter	Max. Cutter Width	50 rpm
	Max. O.D.	265 mm
	Cutter Head Swivel	± 20 ^o
	Max. rpm	50~400 mm
	Cutter Bore Dia.	63.5 mm
Cutting Method Conventional Diagonal Under-pass Plunge

Tiêu chí của chúng tôi

Máy Cà Răng HGS 4H-NC4 / NC5 (Gear Shaving Machine)

GEAR SHAVING MACHINE HGS 4H-NC4 / NC5
Works	Max. Module	1~8 mm
	Max. O.D.	25~400 mm
	Max. Works Width	150 mm
	Max. Works Length	700 mm
Axial axis	Max. Infeed	± 75 mm
Tangential axis	Max. Infeed	± 6 mm
Cutter	Max. Cutter Width	50 rpm
	Max. O.D.	265 mm
	Cutter Head Swivel	± 20 ^o
	Max. rpm	50~400 mm
	Cutter Bore Dia.	63.5 mm
Cutting Method Conventional Diagonal Under-pass Plunge

Model No.	HGS 4H-NC5	HGS 4H-NC4	HGS 250-NC3	HGS 250-NC2
X axis	●	●
C axis	●	●
Z axis	●	●	●
Y axis	●	●	●	●
B axis	●		●	●

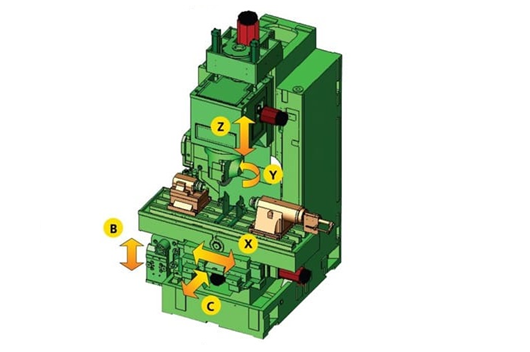

AXIS DESCRIPTION X axis : Work table motion C axis : Work table motion Z axis : Cutter feeding stroke Y axis : Cutter head swivel angle B axis : Crowning and taper motion
